umbrella

umbrella is an OpenGL based graphing tool, that reads the graphviz graph file format.

It began life as gpgl, which was designed to display GPG webs of trust.

umbrella is being used to display computer networks, and the goals include tying the tool into other network tools such as nagios, mrtg, SNMP traps, and so on, to provide a pretty eyecandy map of ones network, suitable for displaying on the biggest screen in the NOC, just like in the movies.

umbrella is free software, licensed under a BSD-like license.

The latest version of the source code is kept in arch:

baz register-archive http://arch.spacepants.org/jaq@spacepants.org--2004

baz get jaq@spacepants.org--2004/umbrella--main--0

see here for details.

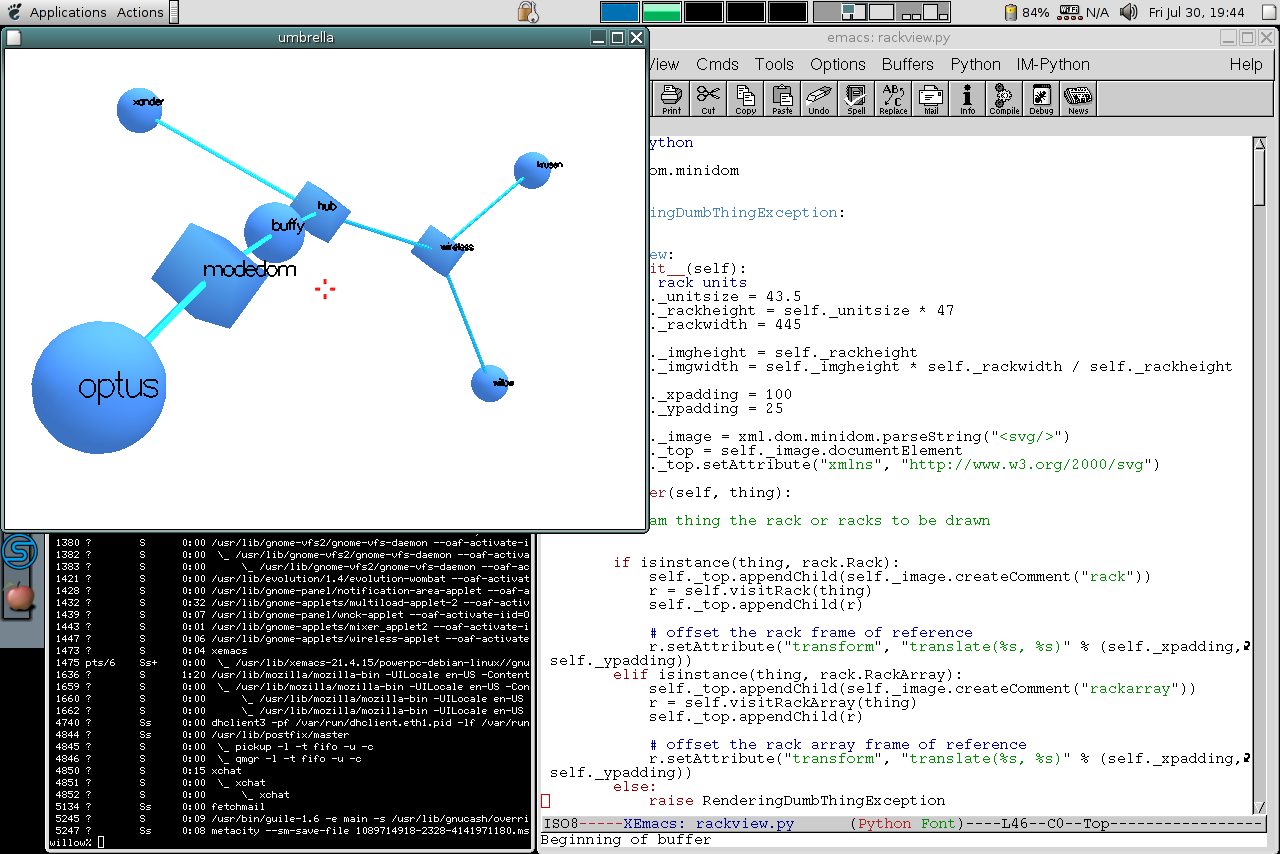

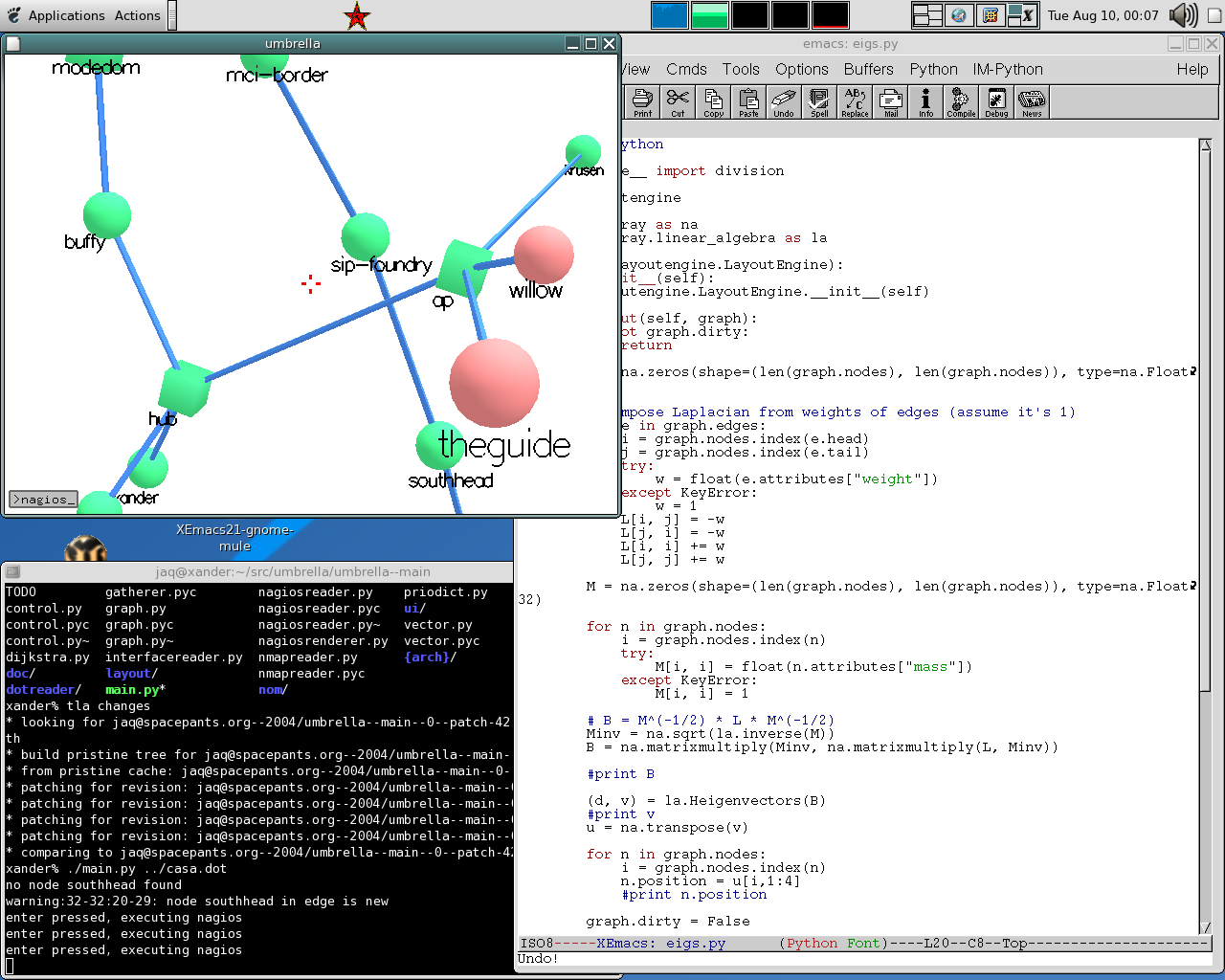

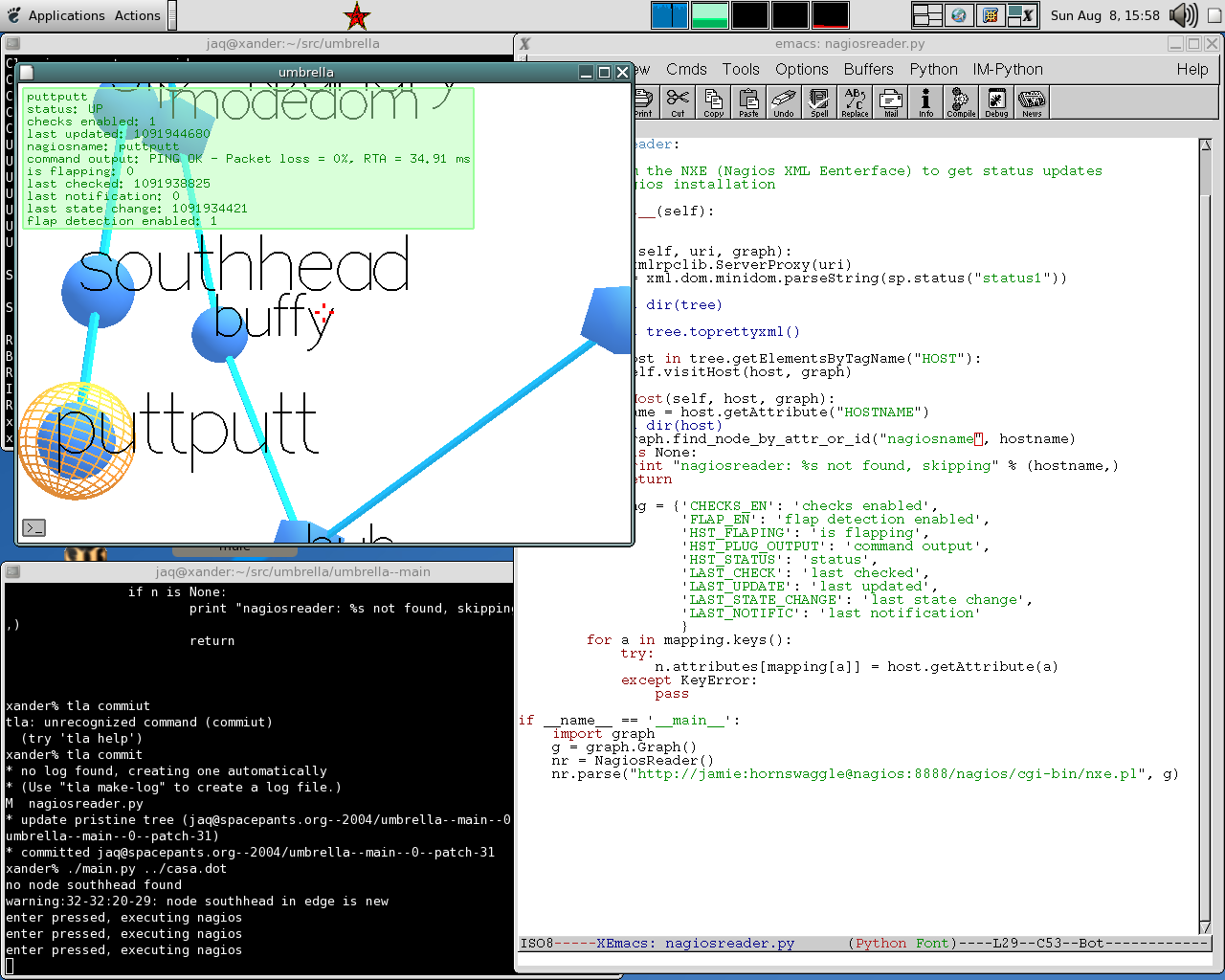

screenshots

Send any patches or suggestions to Jamie Wilkinson
